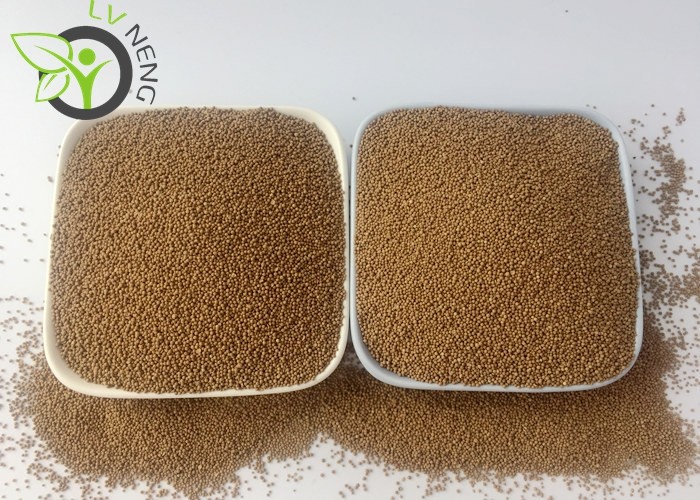

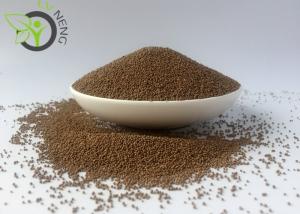

Zeolite Granular Insulating Glass Molecular sieve Adsorbent
Overview
Insulating Glass Molecular Sieve is the product to provide the insulating glass industry with the highest water capacity and lowest gas adsorption for a solvent-free system.
Feature
1) Very Selective Adsorption
Insulating glass molecular sieve has been designed as a high water capacity adsorbent with the lowest capacity for air or other gases. The highly selective pore structure of assures excellent water dew point protection while eliminating the co-adsorption of gases in the sealed air space.
2) Low Deflection
Because insulating glass molecular sieve minimizes pick up of other gases, it reduces adsorbent contribution unit deflection and stress under severe climatic conditions.
3) Economy and Performance
It increases gas-filled nit production rates since units can be sealed immediately after filling. In addition, the use of insulating glass molecular sieve maintains unit sound and heating insulation values by minimizing the adsorption of gases from the sealed space.
4) Homogeneous and Non-Separating
Unlike blends of two different desiccants that separate because of different component densities, insulating glass molecular sieve is homogeneous and uniform. Each bead is like every other. There’s no need to worry about unit-to-unit variation, which can occur with blends.
5) Residual Moisture
Insulating glass molecular sieve is supplied as a fully activated Insulating Glass Adsorbent, ready for use in spacer filling operations.
Technical Index
| Insulated Glass Drying Molecular Sieve Type A Typical Physical Properties |
| Items | Unit | Value |
| Bead Size | mm | 0.5-1.0 | 1.0-1.5 | 1.5-2.0 |
| Bulk Density | g/ml ≥ | 0.72-0.82 | 0.70-0.80 | 0.68-0.78 |
| Equilibrium Water Capacity @ 25℃ | wt% ≥ | 19.0-21.5 | 19.0-21.5 | 19.0-21.5 |
| Equilibrium Nitrogen Capacity | mg/g ≤ | 2.0 | 2.0 | 2.0 |
| Heat of Adsorption | BTU/lb of H2O | 1800 | 1800 | 1800 |
| Crush Strength | Point Contact | N ≥ | - | 10-20 | 30-50 |
| Variation Coefficient | - | 0.3 | 0.3 | 0.3 |
| Dust(Turbidity Meter) | ppm ≤ | 30 | 30 | 30 |
| De4lta T*(10g/10ml H2O) | ℃ ≥ | 38 | 38 | 38 |
| Dew Point | ℃ ≤ | -73 | -73 | -73 |
| Loss of Ignition(950℃) | wt% ≤ | 2 | 2 | 2 |
| Size Qualification | % ≥ | 96 | 96 | 96 |
| Package Moisture | wt% ≤ | 1.5 | 1.5 | 1.5 |
| The interval value of the indexes above are on the basis of the different grade of Insulated Glass Desiccant |
Attention
1. The product cannot be exposed in the open air and should be stored in dry condition with air-proof package
2. The product should be regenerated after a certain period of adsorption. The appropriate regenerated temperature would be better below 350°C.
