LPG Dehydration Used 4A Molecular Sieve Adsorbent 2.0-3.0mm, 3.0-5.0mm,4.0-6.0mm
Introduction

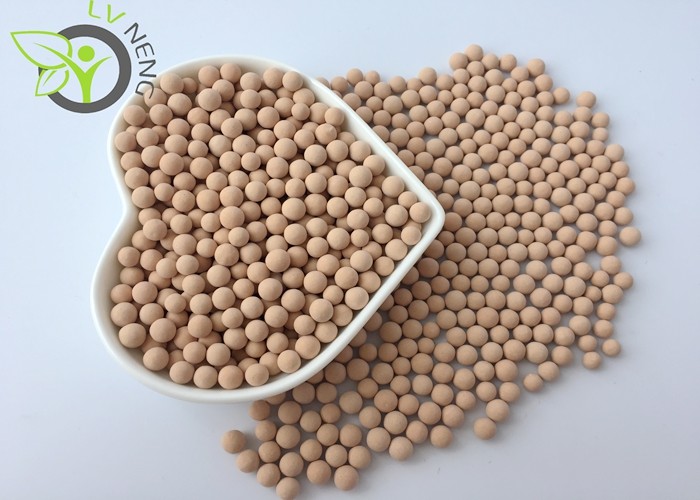

4A molecular sieve has the 4Å aperture, it can absorb water, methanol, ethanol, hydrogen sulfide, sulfur dioxide, carbon dioxide, ethylene, propylene, don’t absorb any molecules(including propane) whose aperture more than 4Å.4A molecular sieve has the higher performance of water adsorption capability than any other molecular sieve. It is one of molecular sieves varieties which has the largest dosage.
Technical Index
| Molecular Sieve 4A Typical Physical Properties |
| Items | Unit | 8*12 Mesh | 4*6 Mesh |
| Bead Size | mm | 1.6-2.5 | 3.0-5.0 |
| Bulk Density | g/ml ≥ | 0.70-0.82 | 0.65-0.80 |
| Equilibrium Water Capacity @ 25℃ | wt% ≥ | 20.5-22.5 | 20.5-22.5 |
| Equilibrium Methanol Capacity | wt% ≥ | 15.0 | 15.0 |
| Heat of Adsorption | BTU/lb of H2O | 1800 | 1800 |
| Crush Strength | Point Contact | N ≥ | 30-80 | 85-160 |
| Variation Coefficient | - | 0.3 | 0.3 |
| Attrition Rate | wt% ≤ | 0.1 | 0.1 |
| Size Qualification | % ≥ | 98 | 98 |
| Package Moisture | wt% ≤ | 1.5 | 1.5 |
| The interval value of the indexes above are on the basis of the different grade of Molecular Sieve 4A |
Application of 4A molecular sieve
Drying of gases and liquids such as air, natural gas, alkanes, and refrigerants; preparation and purification of argon; static drying of pharmaceutical packaging, electronic components and perishable substances; dehydrating agents in paints, fuels, and coatings.
Our Services
1. We promise to reply to your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.The experienced foreign trader with professional product knowledge.
4. The value on business credite, promise to protect your sales data, design, patent information.
5. Sample & OEM service is available
6. After-sales service. any question will be settled within 3 days
Storage
The molecular sieve shall be stored at room temperature, in which the relative humidity is not exceed 90%, and be not exposed in air, and prevented against water, acids and alkalizes.
Packaging
1, 25KG/carton; 2, 35KG/carton drum; 3, 150KG/Sealed iron drum
Delivery Time
About 3-15 days after the payment.
